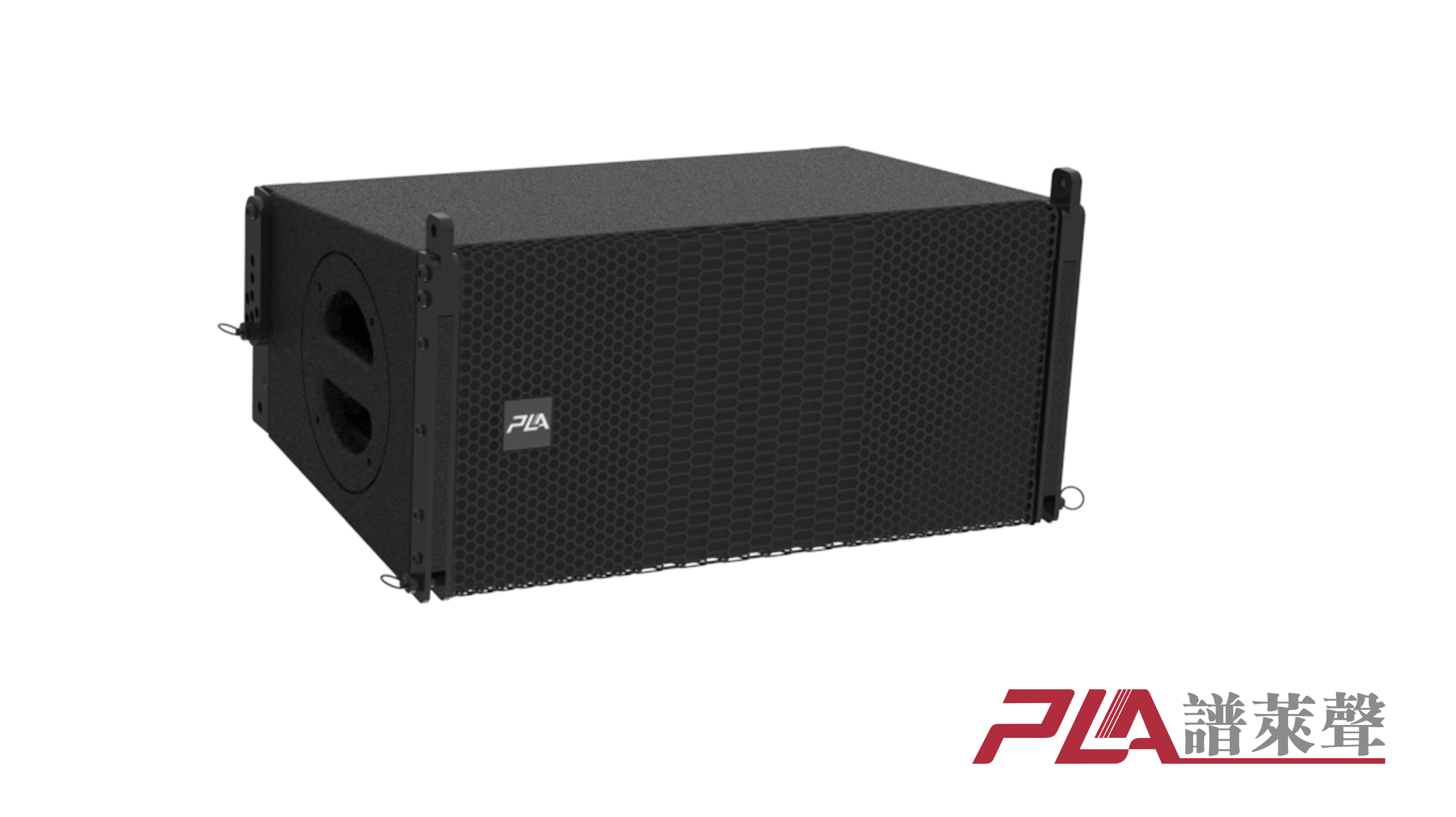

        LS110





        ApplicationsFeature
        Touring performanceExtremely compact , Small enclosure, light weight;Configuration of WPE wavepath equidistant ac
        TheatreAll neodymium high sensitivity unit,great dynamic margins
        ChurchTouring performance、Theatre、Multipurpose hall、Church
        Multipurpose hallWith WCT (Wavefront Coupling Technology)





        Technical parameters

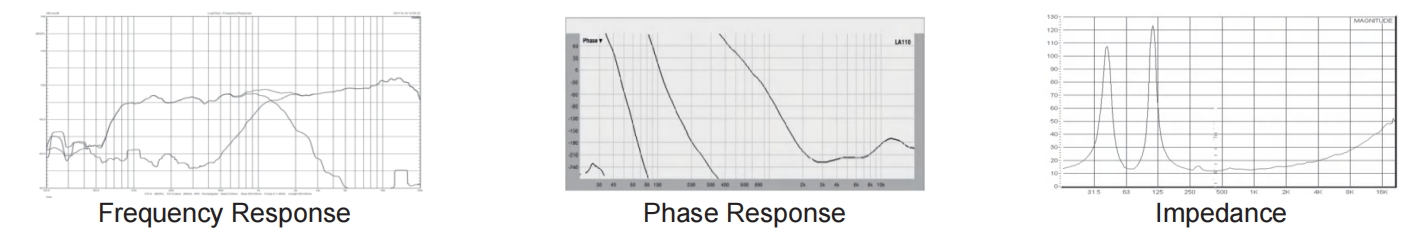

        Frequency response60 Hz-18 kHz(+3 dB) 50 Hz-20 kHz(-10 dB)
        Nominal directivity(-6dB)100°(H) 10°(V) adjustable
        Sensitivity (@1w/1m)HF/LF:112dB/103dB SPL
        Power RatingHF/LF:80W/350W
        ImpedanceHF/LF:16/16 ohm
        Maximum SPLHF:131/141dB SPL peak LF:128/138dB SPL peak
        Transducers

        LF:1x10" All Condition Woofer

        HF:1x3" Phase Correction compression driver



        Physical data

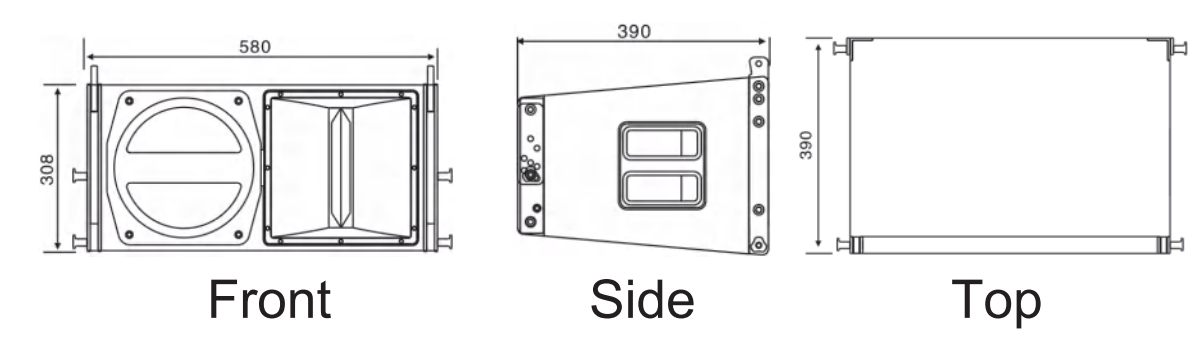

        Dimensions

        580x390x308mm


        Weight22.5Kg
        Connectors

        WP4*2,NEUTRIK NL4MP*2


        Speaker Cables

        WP4:1-2+...LF,3-4+...HF NL4:1+1-...LF,2+2-...HF

        Material

        Imported multi-plywood Environmental waterproof and anti corrosion coatings

        Finsh

        Black Polyurea paintings


        GrilleBlack epoxy mesh grille with acoustically reticulated cloth

        meshDPR (Double perforation Rate) double perforation rate technology design, in which the perforation rate of the mid-high transmitting area is more than 90%, which greatly improves the sound transmission efficiency and reduces the acoustic crosstalk of the grille.
        Rigging

        0、1、2、3、4、5、7.5、10°Adjustable
