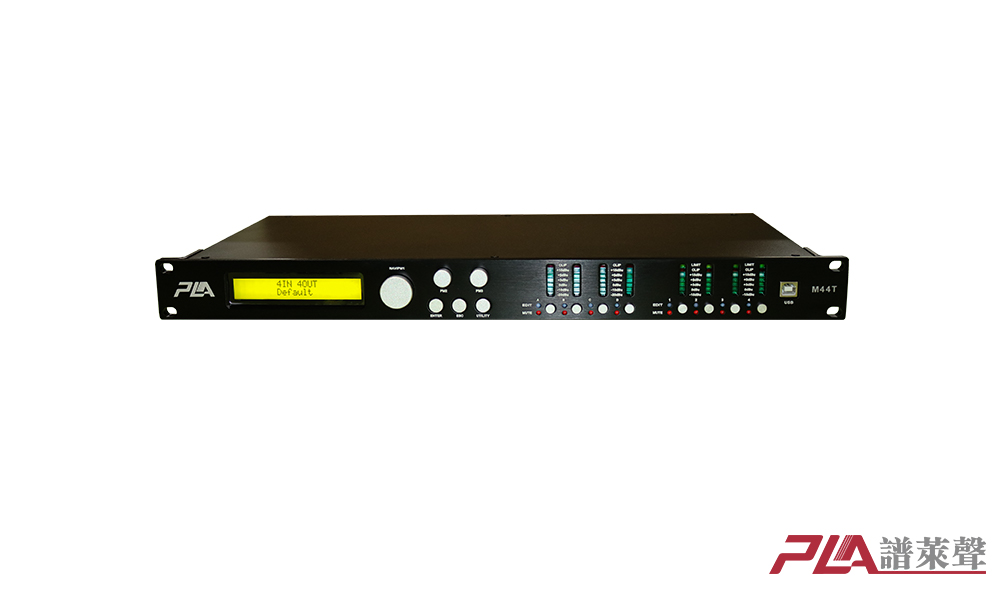

        M44T



        ★Input/ Output

        Input channel: M44T(4ch)

        Output channel: M44T(4ch)

        Input impedance:＞10KΩ

        Output impedance:50Ω

        Max.Level: +20dBu

        Mode:electronic balance

        ★Front Panel Figuration

        Monitor: Two line 20 character backlight LCD

        Electronical level: 7-bit LED

        The key: 8 mute button

        8 channel selection button

        3 menu button

        3 parameter control button

        ★Adjustable Parameters

        Master gain:-12 to 12dB, 0.1dB stepping

        Channel gain: -18 to 0 dB, 0.1dB stepping

        Phase：0°or 180°

        Delay: Each input/output Max.850ms

        EQ：Each input/output,5xEQ

        EQ types: PEQ, HP, LP, shelv,

        Aull pass, band pass, Trapper

        EQ gain：-15 to +15dB, 0.5dB stepping

        EQ bandwidth: 0.009 to 4.8 octaves

        (Q=0.3 to 20)

        ★Analog Audio

        Frequency response：+/- 1dB (20 to 20kHz)

        SNR：92dB typical (A weigkted)

        CMRR: > 40dB (20 to 10kHz)

        Crosstalk：< -100dB

        Distortion：0.005% (1kHz @0dBu)

        ★Connector

        Analog Audio input/output: 3pin XLR

        USB Connector: Type B

        Network connector:2×RJ45 connector

        (TCP/IP&M-LAN)

        Maximum Distance: CAT

        5e within 100 meters

        Digital audio output Connector: S/PDIF

        Power: Socket with IEC Standard

        ★Frequency separating filter

        Filter type：Butterworth, Bessel,

        Linkwitz Riley

        The slope: 6 to 48dB/oct，and user defined

        ★ RMS Limiter

        Threshold:-10 to +20dBu

        Compression ratio: 1:1 to 32:1

        Soft/hard turning point：0% to 100%

        Attack time: 5 to 200ms

        Release time: 0.1s to 3s

        ★Digital Audio

        DSP：24bits

        Sampling rate：48kHz

        ADC/DAC：24bits 192KHz high-resolutionchip

        Transmission delay：1.27ms

        ★General Specification

        Power：90-265 VAC (50 / 60Hz)

        Dimension：19"x1.75"x9"(483x44x229mm)

        Weight：10 lbs / 4.6 kg

        ★Signal input type

        Analog/digital

        ★Peak Limiter

        Threshold: -10 to +20dBu

        Attack time: 5 to 200ms

        Release time: 0.1s to 3s
