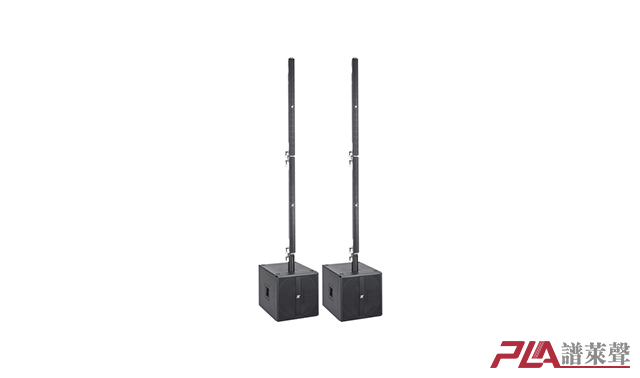

Axle KRX202

Small format, high pressure powered stereo system

While the smallest of the Axle line, the Axle-KRX202 can pack a punch. Composed of one Dragon-KX12 18" coaxial loudspeaker paired with a Thunder-KMT18 18” subwoofer per side in a stereo configuration, the KRX202 is an aggressive, small format portable system that produces high pressure in the near field.

Ideal applications are DJ use, small clubs and lounges, and event productions.

Features

Unique Performance-to-Size Ratio

Color Customizable

Integrated DSP

Dante Compatible

Four-Corner Port Configuration

Selectable Coverage

Self-Powered Capabilities

Onboard Touch Screen

Applications

Theatrical reinforcement

Concert Halls

AV system

Movie and special effects

Religious Venues

Clubs

Bars

Yacht

Restaurants

Touring and fixed film and television system

Theatre

Specifications

Rumble-KMT181

Acoustics
Power Handling	800 W (AES)
Impedance	8 Ohm
Frequency range	30 Hz - 150 Hz ± 3dB (preset relating)
Maximum SPL	130 dB continuous - 136 dB peak
Coverage
Horizontal	Omni°
Vertical	Omni°
Crossover
Coaxial	DSP controlled
Frequency	150 Hz (preset dependent)
Transducers
Full-range	1 x 18” Neodymium speakers with 3” voice coil
Amplifiers
Type	1 modules class D - DSP controlled
Power	2x1000 Watt @ 8Ω
Protection	Dynamic limiter, over current, over temp, short circuits

Dragon-KX12

Acoustics
Power Handling	800 + 200 W
Impedance	8 Ohm
Frequency range	120 Hz - 19 KHz
Maximum SPL	127 dB continuous - 133 dB peak
Coverage
Horizontal	100°/30° (depending on horn orientation)
Vertical	30°/100° (depending on horn orientation)
Crossover
Coaxial	External Crossover required
Frequency	12” Neodymiun magnet woofer with 3” voice coil Neodymium magnet compression driver with 2”voice coil
Power Audio Imput
Connectors	2 x 4-pin Speakon
Wiring	1+ 1- (Signal IN & LINK ) 2+ 2- (Through)
Recommended Amplifiers
Type	KMT18, KMT21, KMT218, KA84 Neodymium magnet compression driver with 2”voice coil
Physical Overview
Dimensions	34.0 x 32.0 x 20.0 cm (13.38”x 12.59”x 7.87”) (1)
Weight	12.2 Kg (26.89 lb)
