Type

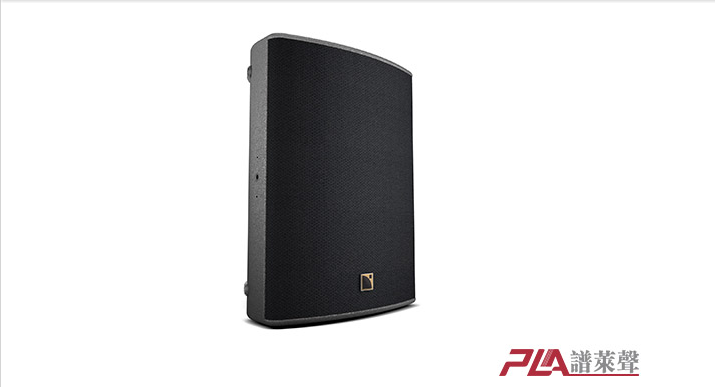

Active 2-way coaxial enclosure

Powering and driving system

LA4X, LA8, LA12X

Bandwidth

55Hz - 20kHz ([X15] preset)

Maximum SPL

138dB ([X15] preset)

Nominal directivity

H x V: 40° x 60°

Transducers

LF: 1 × 15’’, bass reflex

HF: 1 × 3’’compression

Rigging

2 × handles

DIN580-compatible M8 threaded insert

4 × M10 threaded inserts

2 × 35 mm pole sockets

Dimension(W×H×D)

430 x 580 x 375mm

16.9 x 22.8 x 14.8in

Net weight

21kg / 46.2lbs.
