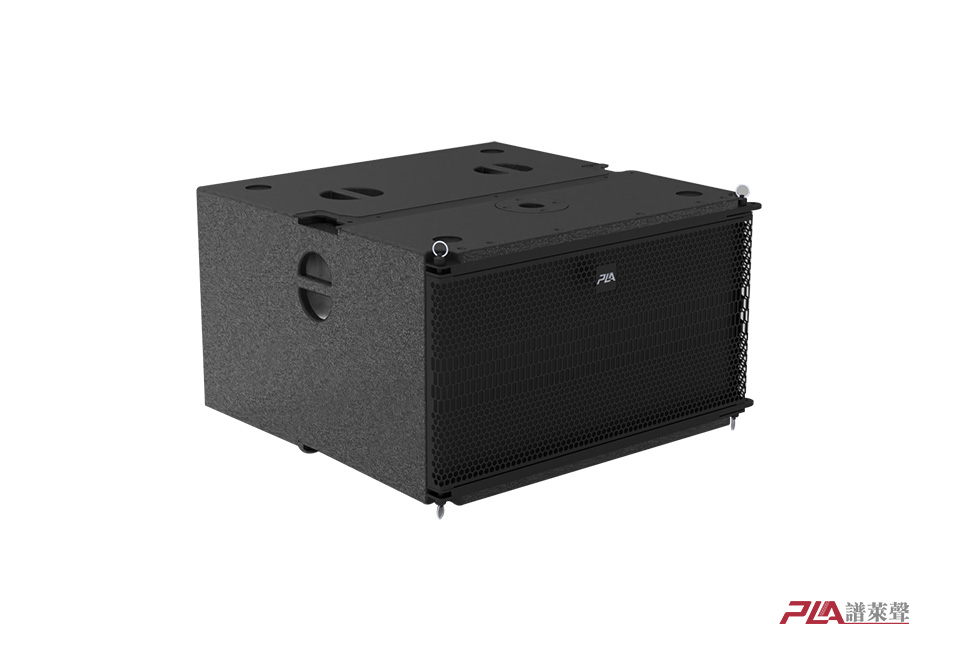

LS10S
| Applications | Feature | |
Touring performance | Extremely compact , Small enclosure, light weight;Configuration of WPE wavepath equidistant acoustic guide | |
Club, multi-function hall | Precise realization of multiple applications of hanging, stacking and supporting with LS10. | |
Churc | Combined with the LS10 and 18-inch subwoofer, it can be combined into a medium-to-large line array system. | |
| Technical parameters | ||

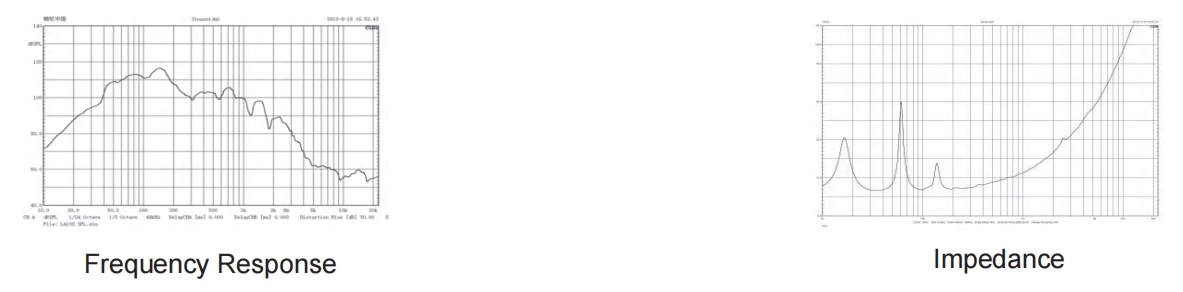

| Frequency response | 40Hz~ 150Hz(士3dB ) | |
| Nominal directivity(-6dB) | Omnidirectional | |
| Sensitivity (@1w/1m) | 98 dB SPL | |
| Power Rating | 500W | |
| Impedance | 8 ohm | |
| Maximum SPL | 125 dB/135 dB SPL | |
| Transducers | LF:1x15" All Condition Woofer |
| Physical data | ||

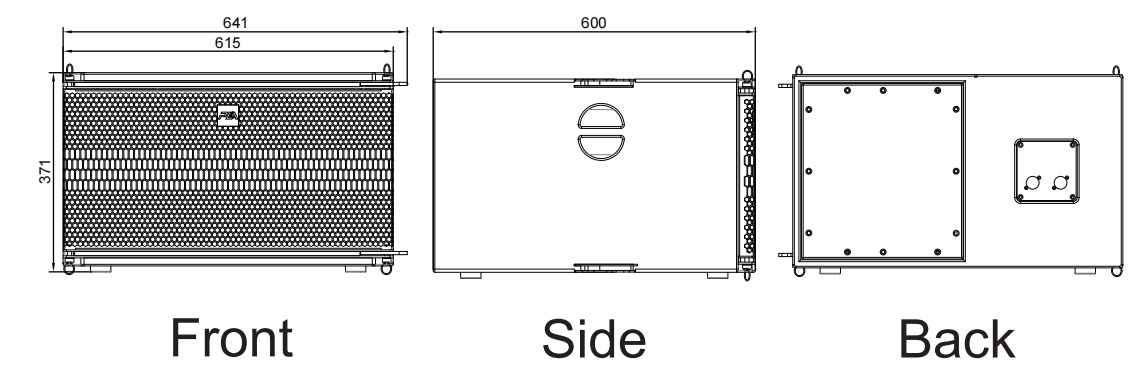

| Dimensions | 641x600x371mm | |
| Weight | 35Kg | |
| Connectors | NEUTRIK NL4MP*2 | |
| Speaker Cables | 1+1- | |
| Material | Imported multi-plywood Environmental waterproof and anti corrosion coatings | |
| Finsh | Black Polyurea paintings | |
| Grille | DPR(Double Perforation Rate )technology design, in which theperforation rate of the middle and high transmission area ismore than 90%,Greatly improves the sound transmissionefficiency and reduces the acoustic crosstalk of the surfacegrid. | |
| Rigging | 0,-5 adjustable | |
-
