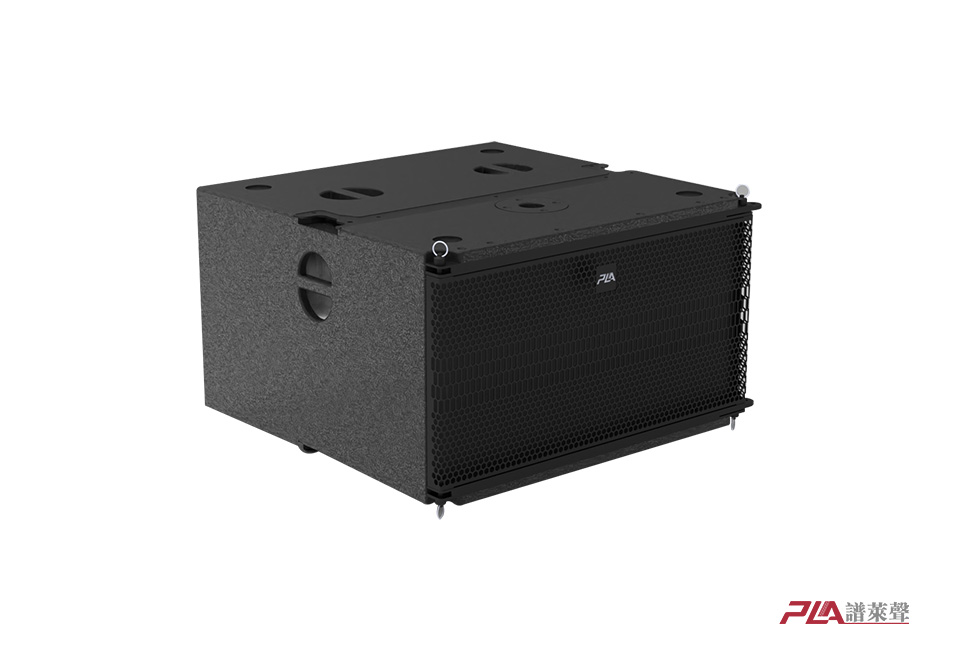

        LS10SP



        ApplicationsFeature
        Touring performanceExtremely compact , Small enclosure, light weight

        Club, multi-function hall

        Precise realization of multiple applications of hanging, stacking and supporting with LS10.

        Church

        		Combined with the LS10 and 18-inch subwoofer, it can be combined into a medium-to-large line array system.



        Technical parameters

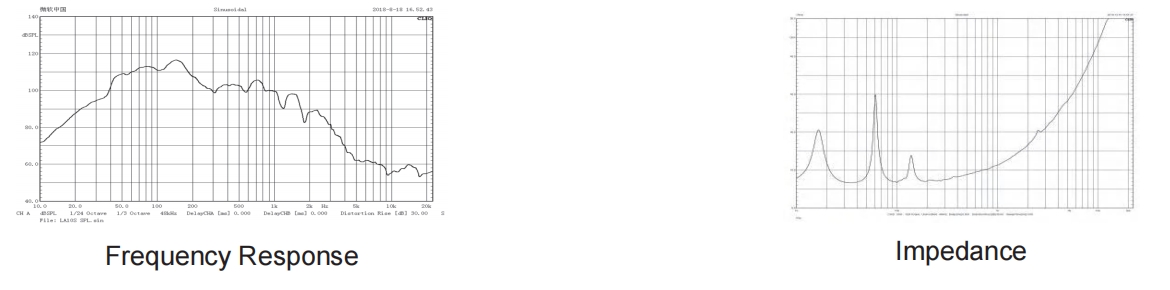

        Frequency response40Hz ~ 150Hz(士3dB )
        Nominal directivity(-6dB)Omnidirectional

        Maximum SPL

        		125dB/135dB SPL
        Power Requiremen200-240V ~ 50-60Hz
        Sensitivity(@1w/1m)131dB SPL
        Impedance8 ohm
        TransducersLF:1x15" All Condition Woofer
        SNR104dB
        Output electric circuit
        		Class D circult
        Power Rating2000W @4Ω


        Physical data

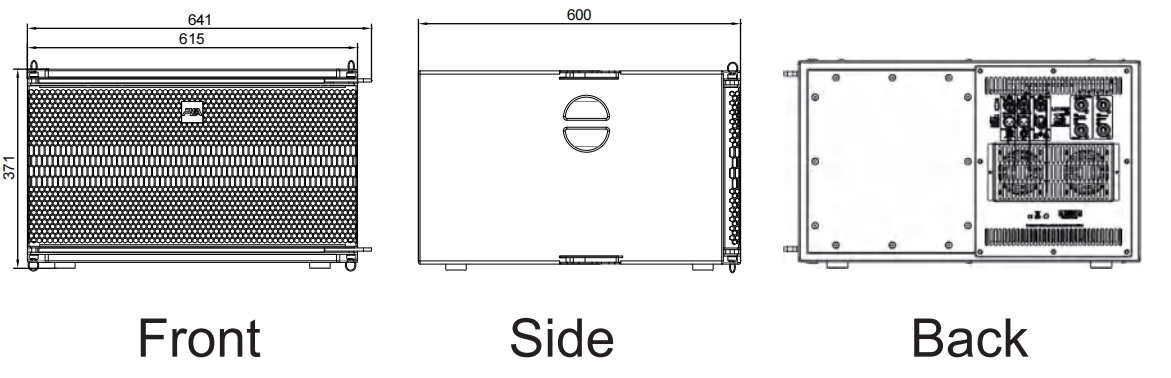

        Dimensions641x600x371mm
        Weight37Kg
        Connectors

        USB+XLR+PowerCON+NEUTRIK NL4

        Speaker Cables

        1+1-


        MaterialsThe box body is made of birch boards with environmentally friendly PUA polyurea waterproof and anti-corrosion coating on the surface.
        FinshBlack Polyurea paintings
        Grille

        DPR(Double Perforation Rate )technology design, in which theperforation rate of the middle and high transmission area ismore than 90%,Greatly improves the sound transmissionefficiency and reduces the acoustic crosstalk of the surfacegrid.

        Angles

        0、-5° adjustabl
