        P1DI Passive Isolation Box


               The P1DI DI box is a passive direct-insert box with excellent performance,The P1DI is often used to handle extreme transient signals without introducing distortion or coloring to the sound which benefit from the transformer,P1DI，The P1DI guarantees 100% separation between the input side of the instrument and the balanced output, which eliminates the “hum” and “squeak” caused by the ground loop.When devices with AC power, such as keyboards and guitars, are connected together, most of the time there is an grounding loop,P1DI can eliminate this problem.

               The P1DI Passive DI box is equipped with a high-performance bormo alloy isolation transformer with a nickel laminated core.Nickel does not retain memory or polarity. This has the advantage of reducing phase distortion, increasing linearity and reducing harmonic distortion.Fix the problem and you'll have the best sound！




        Features:

        ※ With AIT audio isolation technology

        ※ Passive inline box with excellent performance

        ※ 10hz-40khz linear presentation

        ※ Extra large level processing capability without distortion

        ※ No battery or phantom power required, passive use Eliminates hum and squeak in audio signals

        ※ Never  overload

        ※ Eliminates the noise of “hum” and “squeak”

        ※ For keyboards, modules, electronic drums, etc


        Frequency Response: 20Hz~20kHz(±0.2dB)

        Dynamic Range: 135dB

        Maximum Input:+21dB@20Hz~20kHz

        Dimensions: 0.05%從20Hz~20kHz@-10dB

        Phase Deviation:0.3°@100Hz;3°@20Hz

        Input Impedance: 140kΩ,unbalance

        Output Impedance:150Ω,Balance

        Dimension:105mm(L)×98mm(W)×52mm(H)

        Weight: 510g

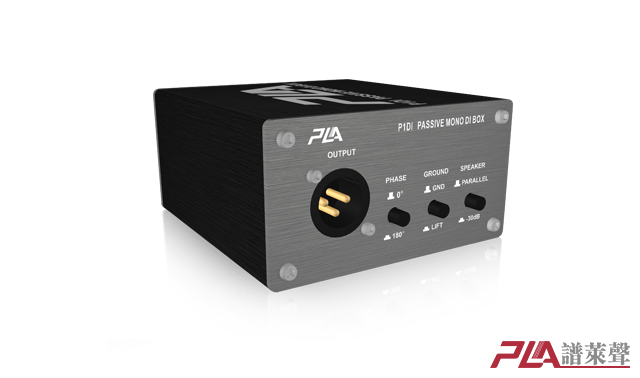

        P1DI .jpg

























        Description:

        (1)-15dB PAD:-15db signal attenuation switch

        (2)MIX:Thru-Out/Mix-In Switch

        (3)6.35mm INPUT:6.35mm signal input socket

        (4)6.35mm THRU:6.35mm THRU OUTPUT/INPUT R

        (5)XLR OUTPUT: Balanced XLR output.

        (6)PHASE SWITCH :Phase forward/reverse switch

        (7)GROUND LIFT :Ground switch, when the button is pressed out, it means the input is grounded, when the button is pressed down, it means the input is grounded.

        (8)RIGHT OUTPUT :Speaker parallel switch
