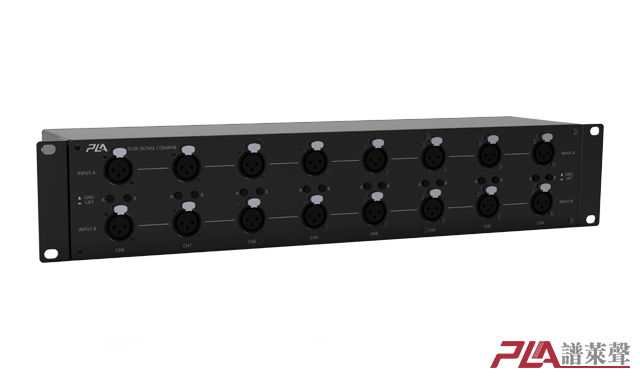

SC08 PASSIVE MAIN AND STANDBY AGGREGATOR

Features：

 As audio technology increasingly matures, A lot of applications need to

have the main and standby audio systems, To improve the security and

stability of the H audio system, Make sure the audio system is absolutely

sound, We developed the SC passive primary and standby signal

aggregator series, And has the TCO (Two Combine One) passive audio

signal aggregation patent technology, SC08 is a stand-alone microphones /

line level audio signal aggregator, Work without an external power supply,

Can transfer two microphones / line audio signals, To balance the audio

output by coupling the isolation transformer, Internal inlet Poo alloy audio

isolation transformer, And the original imported Swiss NEUTRIK Canon

socket. Input circuit can be selected by the panel is the microphones level

or line level, and the audio transformer as mutual isolation, so the two

microphoness mixed, will not appear two signals offset attenuation, the

aggregator output part with ground switch, ground connection can help to

solve the noise caused by the ground loop, the ground, SC08 professional

microphones / line level aggregator, is designed by the audio specifications

of broadcast level H quality, suitable for the use of H sound quality

performance requirements.

Specifications：

※ With TCO (Two Cmbiner Dne) passive audio signal aggregation patent technology

※ Broadcast-grade audio quality

※ H Integration Design

※ Combination of two main and standby microphones / line signals

※ Built-in H quality audio transformer isolation output

※ Ground wire separation setting selection

※ Strong and durable all-metal body

※ Military index accessories manufacturing

※ Using the original imported Swiss NEUTRIK Canon socket

Frequency Response:  0dB/-0.15dB , 20Hz~20kHz

Input Level:  +22dBu, (1% 50Hz) ; +28dBu, (0.01% 1kHz)

THDD: 0.002% (0dBu, 1kHz)

Output Short-Circuit Loss:  2.5dB 於 600Ω 負載 ;<0.1dB 於 50kΩ 負載

Set Up: XLRF carnon mother head input,XLRM Canon male head output, ground wire connection switch

尺寸:  483mm×88mm×104mm

重量:  3.2kg
