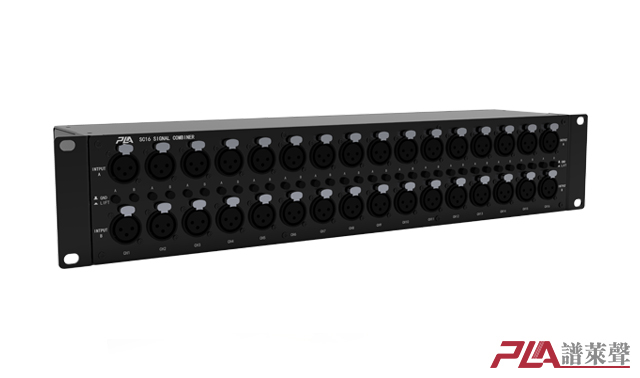

SC16 PASSIVE MAIN AND STANDBY AGGREGATOR

Features：

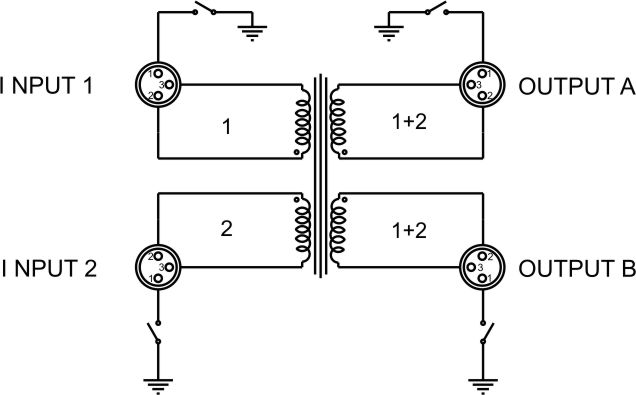

 As audio technology matures，A large number of applications require active and standby audio systems，To improve the security and stability of theaudio system，To make sure the audio system is safe，We have developeda series of SC passive active/standby signal aggregators，And has TCO(Two Combine One) passive audio signal aggregation patented technology，SC16 is a freestanding microphones/line level audio signal aggregator，No external power supply is required. Two microphones/line audio signals can be coupled into one balanced audio output via isolation transformer，The interior uses imported Permalloy audio isolation transformer, as well as the original imported Swiss NEUTRIK Cannon socket.

 Input circuits can be selected by the panel to be microphones level or line level and be isolated from each other by audio transformer，So when two microphoness mixed, the two signals won't cancel each other out，The output part of the aggregator is equipped with a ground connection switch to solve the noise caused by the ground circuit.If the switch is set to the eject position,

the ground wire will be set to the ground state and separated when it being pressed,The SC16 professional grade microphones/line level aggregator is designed for broadcast grade high quality audio specifications and is suitable for use with high quality performance requirements.

特性：

※ With TCO(Two Combine One)passive audio patented signal polymerization technology

※ Broadcast grade audio quality

※ Highly integrated design

※ The active and standby audio signals convergence

※ Built-in high quality audio transformer isolates output

※ Ground separation setting selection

※ Durable all metal body

※ Military indicators accessories manufacturing

※ The original imported Swiss NEUTRIK Cannon socket

Frequency Response:  0dB/-0.15dB , 20Hz~20kHz

Input Level:  +22dBu, (1% 50Hz) ; +28dBu, (0.01% 1kHz)

THD:  0.002% (0dBu, 1kHz)

Attenuation loss:  -2.5dB at 600Ωload ;<0.1dB at 50kΩ load

Settings:  XLRF Phoenix Plug Female Input，XLRM Phoenix Plug Male Output, Ground          Connection

Size:  483mm×88mm×104mm

Weight:  3.5kg
