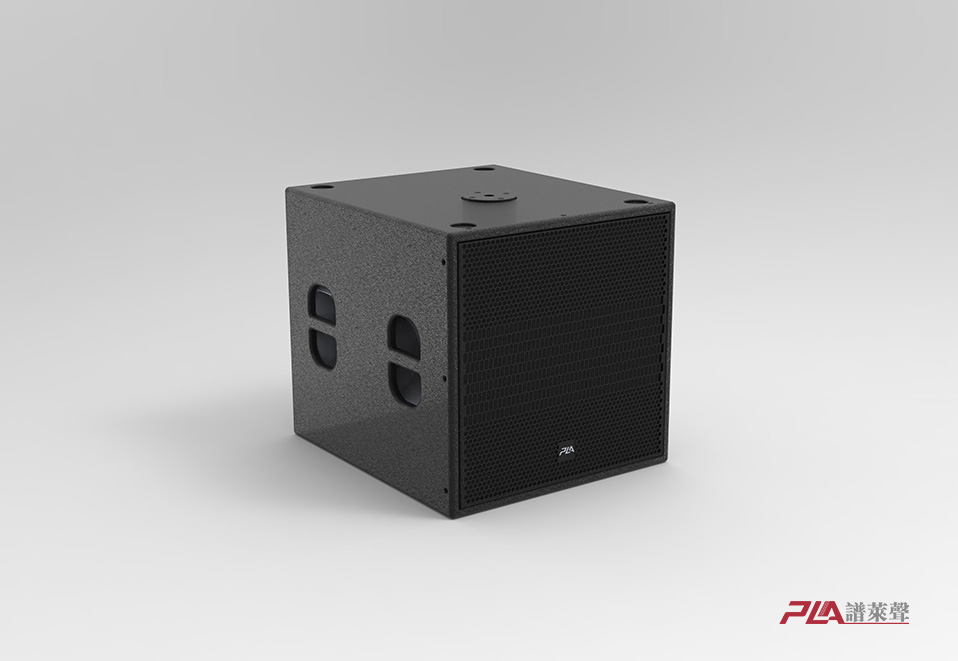

CL18
| Applications | Feature | |
| Conference system | Matched with the CL5 Speacker 18 "Subwoofer | |
| Medium size performance | Direct-discharge compact subwoofer,Low frequency extend to 35Hz(-10db) | |
Configuration of WPE wavepath equidistant acoustic guide | ||
| Technical parameters | ||

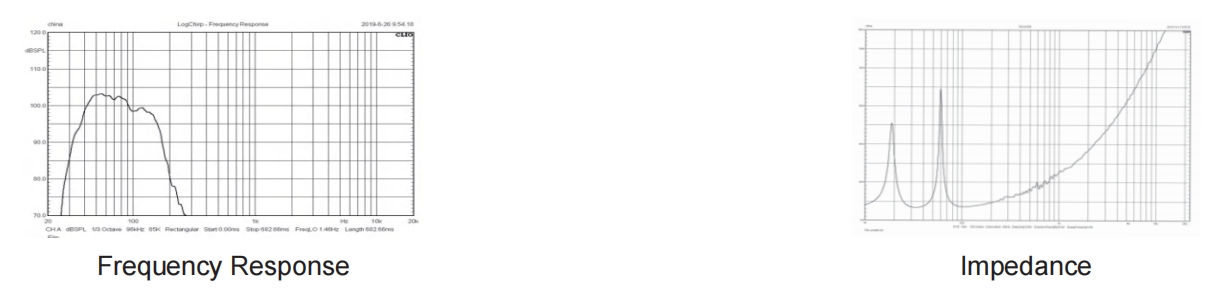

| Frequency response | 40 Hz ～120 Hz (±3 dB )；35 Hz ～180 Hz (-10 dB ) | |
| Nominal directivity(-6dB) | Omnidirectional | |
| Sensitivity (@1w/1m) | 97dB | |
| Power Rating | 1500W | |
| Impedance | 8 ohm | |
| Maximum SPL | 128dB/138 dB SPL peak | |
| Transducers | LF:1x18" All Condition Woofer | |
| Physical data | ||

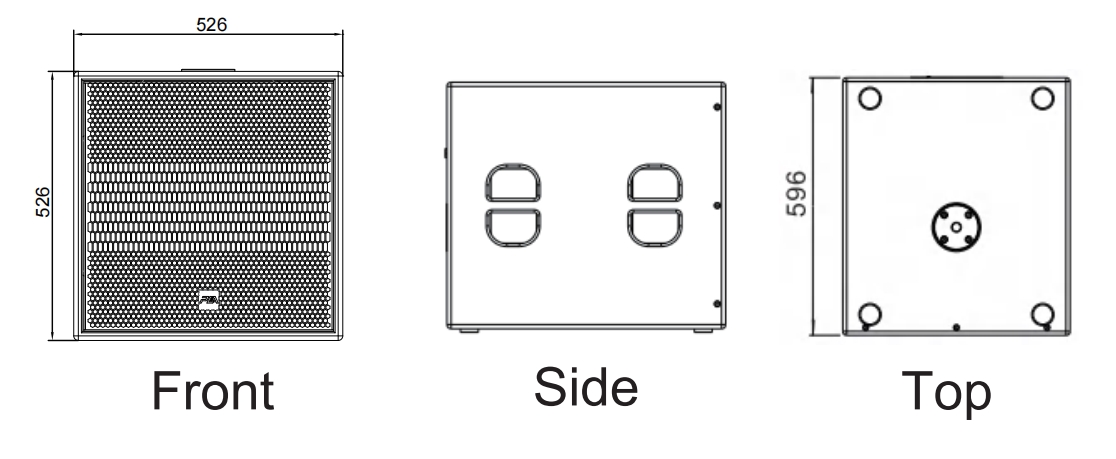

| Dimensions | 526x596x526mm | |
| Weight | 40kg | |
| Material | Imported multi-plywood Environmental waterproof and anti corrosion coatings | |
| Finish | Black Polyurea paintings | |
| Grille | Black epoxy mesh grille with acoustically reticulated cloth | |
| Grille | DPR(Double Perforation Rate )technology design, in which theperforation rate of the middle and high transmission area ismore than 90%,Greatly improves the sound transmissionefficiency and reduces the acoustic crosstalk of the surfacegrid. | |
-
