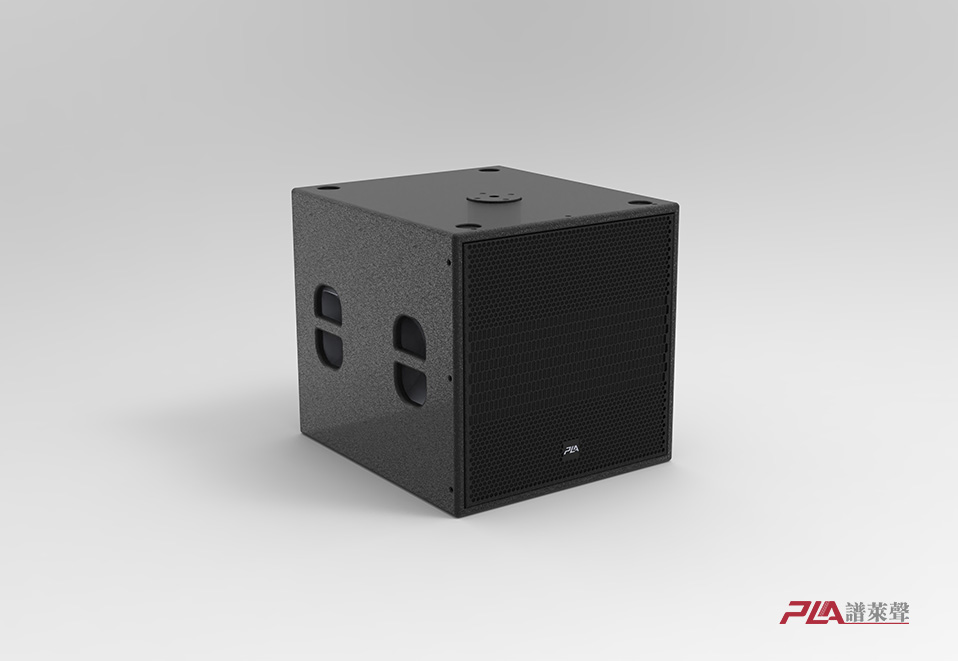

        CL18P



        ApplicationsFeature
        Conference systemBuilt-in Power Rating Amplifier and high quality DSPModule.
        Medium size performanceMatched with the CL5 Speacker 18 "Subwoofer

        Direct-discharge compact subwoofer,Low frequency extend to 35Hz(-10db)

        Configuration of WPE wavepath equidistant acoustic guide




        Maximum SPLTransducersPower RatingTHD+N

        Technical parameters

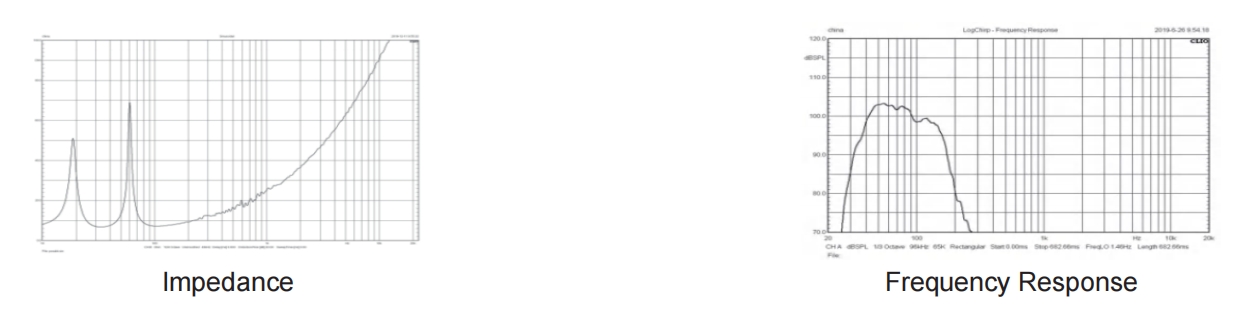

        Frequency response

        40Hz~120Hz(±3dB)；35Hz~180Hz(-10dB)

        Nominal Coverage(-6dB)

        Omnidirectional


        128dB/138dB SPL peak

        LF:1x18" All Condition Woofer

        Power requirement

        200-240V ~ 50-60Hz


        Dual channel 2000W/4



        0.82%(1kHz,Power Rating4Ω)

        Power rating

        SNR

        Cooling method

        Speaker Cables

        Connectors

        1500W

        104dB

        Airflow from back to front, Forced cooling

        Class D circult

        USB+RJ45+XLR+powerCON+SpeakON




        Materia

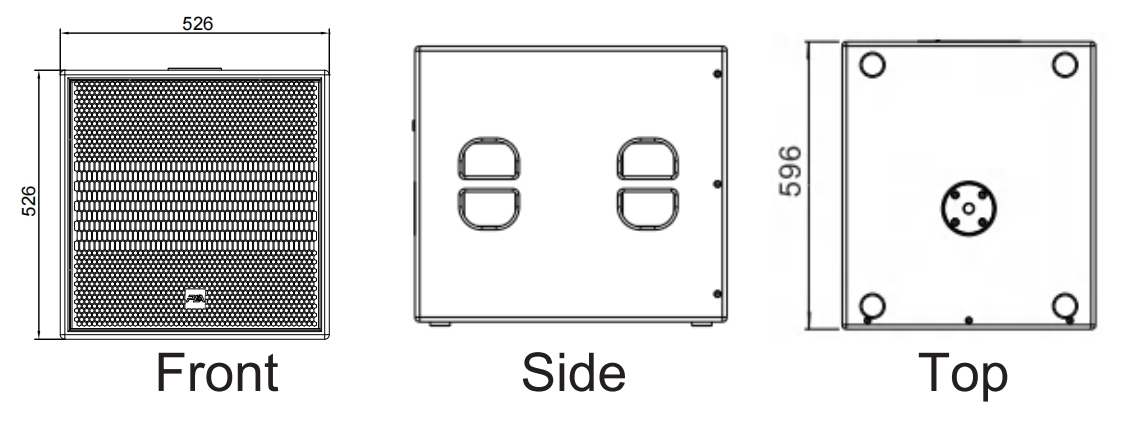

        Physical data

        Dimensions526x596x526mm
        Weight42kg
        Imported multi-plywood Environmental waterproof and anti corrosion coatings
        FinshBlack Polyurea paintings
        Grille

        DPR(Double Perforation Rate )technology design, in which 526theperforation rate of the middle and high transmission area ismore than 90%,Greatly improves the sound transmissionefficiency and reduces the acoustic crosstalk of the surfacegrid.
