Theater

multipurpose hall

Church,Karaoke

Front Zone and Delayed Fill-in

1. Excellent vocal performance

2. 3"Phase Correction HF compression driver

3. Low frequency response extend to 45Hz

4. With CPS (Coaxial Point Source) technology

Technical parameters

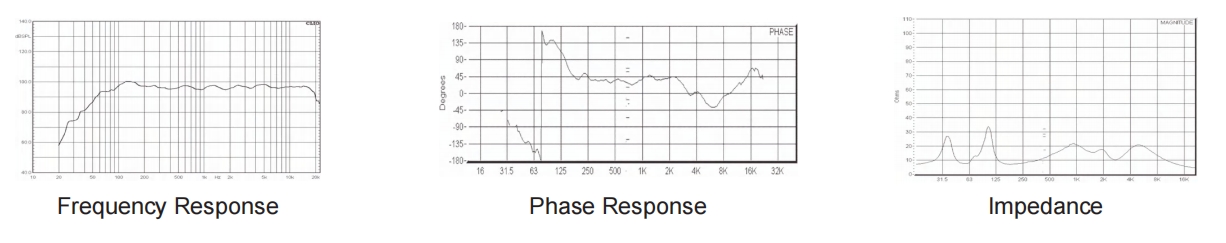

Frequency response

Nominal directivity (-6dB)

Sensitivity (@ 1W/1m)

Power Rating

Impedance

Maximum SPL

Transducers

60Hz~18kHz(±3dB)，45Hz~20kHz(-10dB)

80° (conical)

98dB SPL

400W

8 ohm

133dB SPL peak

LF:1x12" All Condition Woofer

HF:1x3"Phase Correction HF compression driver

Interface method

Connector

Speaker Cables

NEUTRIK NL4MP*2

1+1-

Appearance

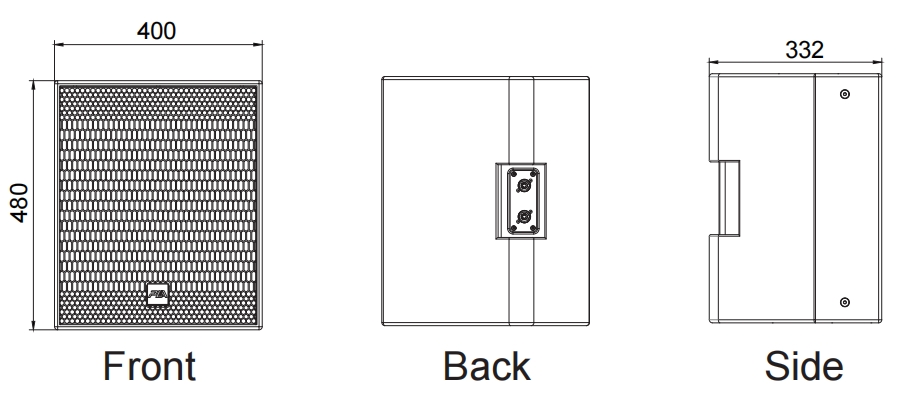

Size

Weight

Material

Finish

Nstallati on

Grille

400x332x480mm

18.5kg

Imported multi-plywood Environmental waterproof and anti-corrosion coatings

Black Polyurea paintings

Pole socket and for multiple flying points

DPR(Double Perforation Rate )technology design, in which theperforation rate of the middle and high transmission area ismore than 90%,Greatly improves the sound transmissionefficiency and reduces the acoustic crosstalk of the surfacegrid.
