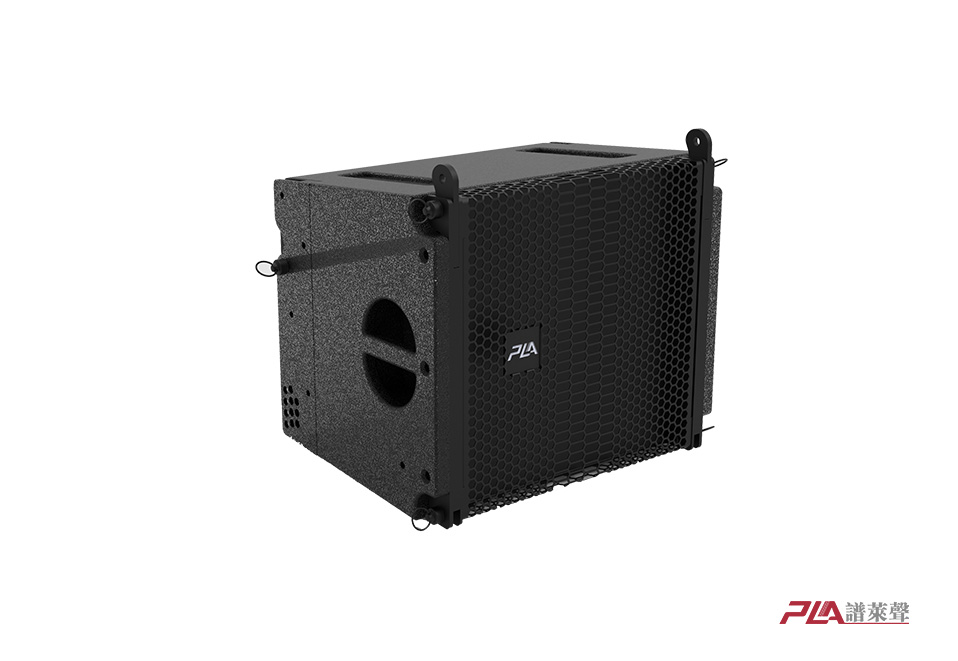

LS8

Applications	Feature
Touring performance	Extremely compact , Small enclosure, light weight；Configuration of WPE wavepath equidistant acoustic guide
Club, multi-function hall	Installation, hanging and dismantling can be done by one person.
Church	Flexible and versatile combination of hanging, stackable, supportive multi-angle Adjustable mounting method
	With CLC (Coaxial Linesource Coupling )technology
	Configuration of WPE wavepath equidistant acoustic guide

Technical parameters

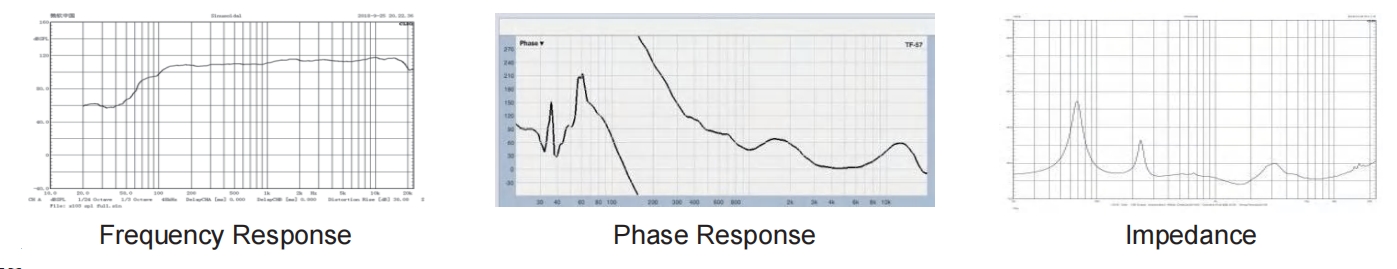

Frequency response	100Hz ~ 18kHz( 3dB) 80Hz ~ 20 kHz (-10dB )
Nominal directivity(-6dB)	100°(H),10°(V Adjustable)
Sensitivity (@1w/1m)	HF/LF: 110dB SPL/ 96dB SPL
Power Rating	HF/LF:60W//250W
Impedance	HF/LF: 16/16 ohm
Maximum SPL	HF:128dB/138dB SPLpeak LF:120dB/130dB SPLpeak
Transducers	LF:1x8" All Condition Woofer HF:1x1.75"Phase Correction HF compression driver

Physical data

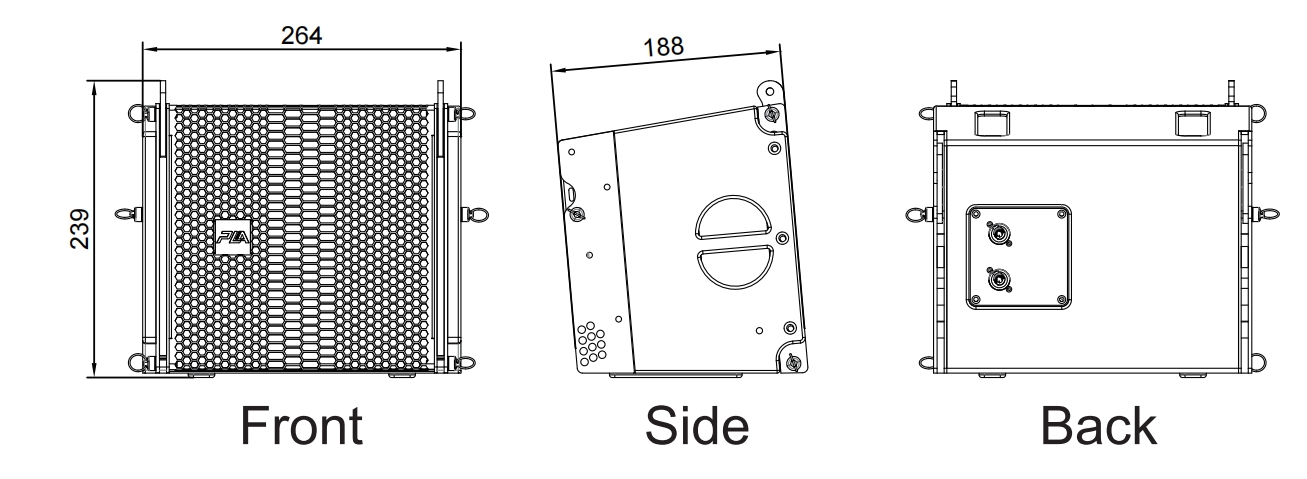

Dimensions	264x188x238.6mm
Weight	6.6kg
Connectors	NEUTRIK NL4MP*2
Speaker Cables	1+1-
Materials	Imported multi-plywood Environmentalwaterproof and anti-corrosion coatings
Finsh	Black epoxy mesh grille with acoustically reticulated cloth
Grille	DPR(Double Perforation Rate )technology design, in which the perforation rate of the middle and high transmission area is more than 90%,Greatly improves the sound transmission efficiency and reduces the acoustic.
Angles	0、1、2、4、5、6、8、9、10°Adjustable
Cover	Black epoxy mesh grille with acoustically reticulated cloth
