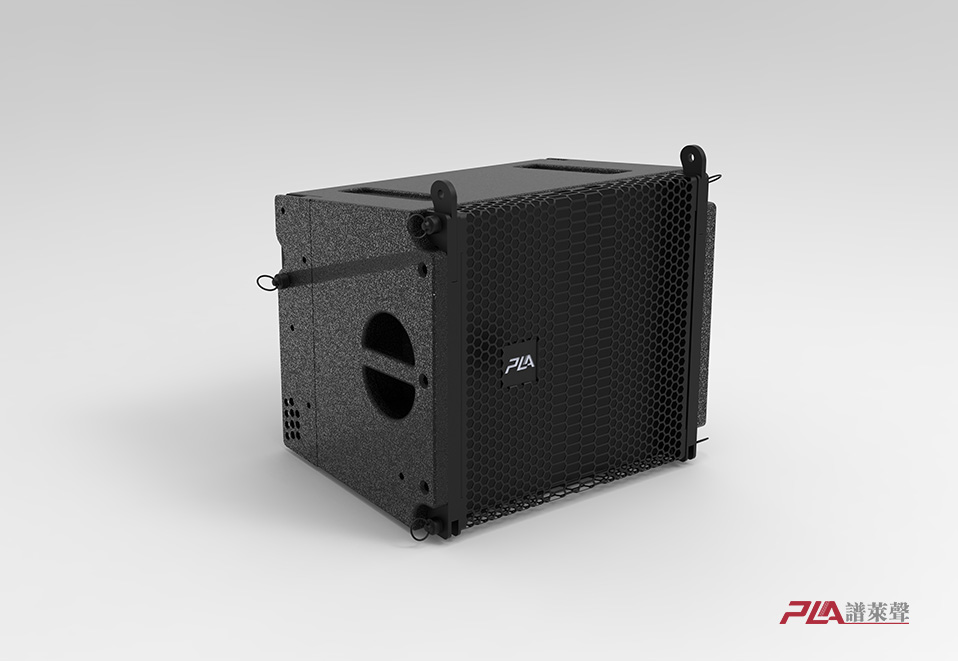

LS10

Applications	Feature
Touring performance	Extremely compact , Small enclosure, light weight；Configuration of WPE wavepath equidistant acoustic guide
Club, multi-function hall	Installation, hanging and dismantling can be done by one person.
Church	Flexible and versatile combination of hanging, stackable, supportive multi-angle Adjustable mounting method
	With CLC (Coaxial Linesource Coupling )technology

Technical parameters

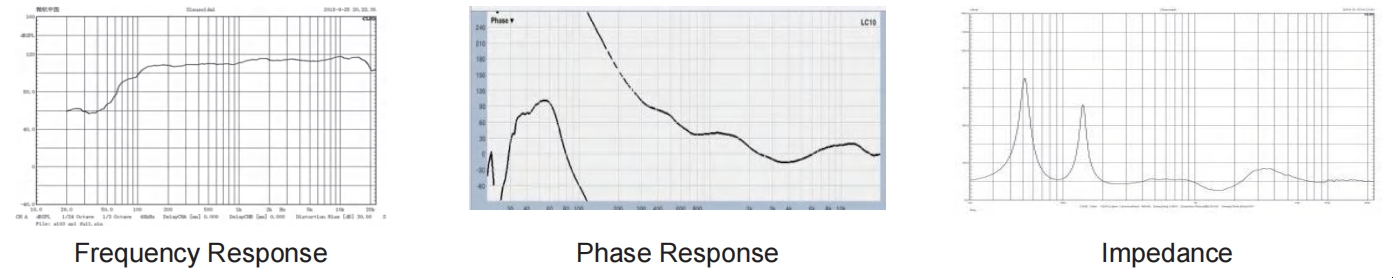

Frequency response	80Hz~ 18 kHz(土3dB) 60Hz ~ 20 kHz (-10dB )
Nominal directivity(-6dB)	100°(H) 10°(V Adjustable)
Sensitivity (@1w/1m)	HF/LF: 112dB SPL/ 96 dB SPL
Power Rating	HF/LF:80W/350W
Impedance	HF/LF: 16/16 ohm
Maximum SPL	HF:131/141dB SPL peak LF:121/131dB SPL peak
Transducers	LF:1x10" All Condition Woofer HF:1x3"Phase Correction HF compression driver

Physical data

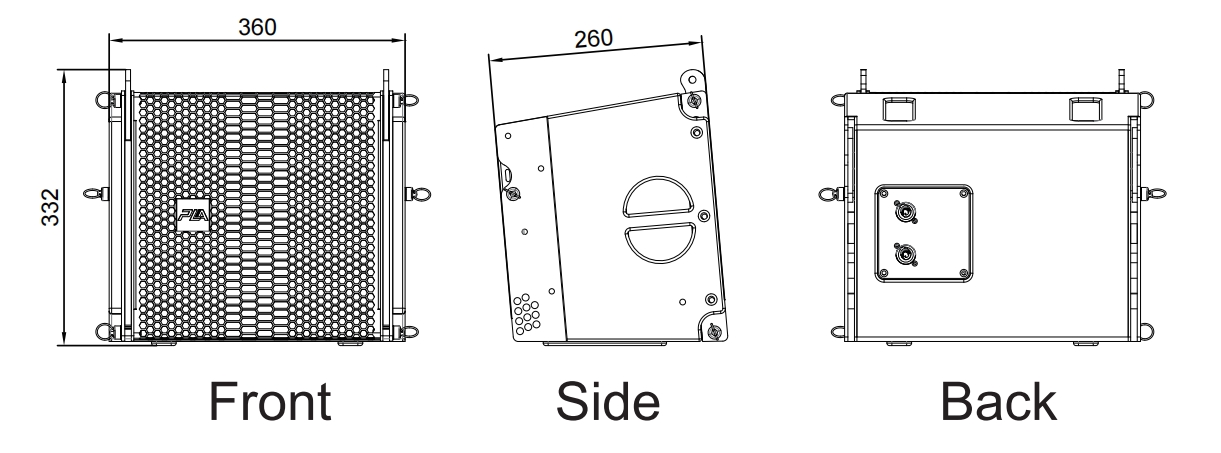

Dimensions	360x260x332mm
Weight	13kg
Connectors	NEUTRIK NL4MP*2
Speaker Cables	1+1-
Material	Imported multi-plywood Environmentalwaterproof and anti-corrosion coatings
Finsh	Black epoxy mesh grille with acoustically reticulated cloth
Cover	Black epoxy mesh grille with acoustically reticulated cloth
Angles	0、1、2、4、5、6、8、9、10°Adjustable
Grille	DPR(Double Perforation Rate )technology design, in which the perforation rate of the middle and high transmission area is more than 90%,Greatly improves the sound transmission efficiency and reduces the acoustic.
