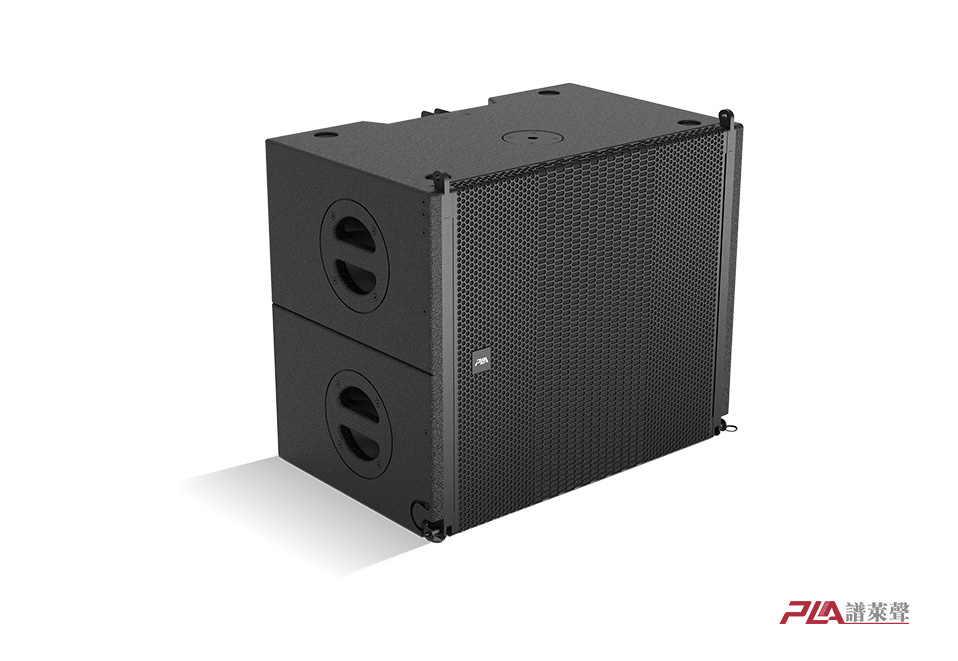

        LS210S



        ApplicationsFeature
        Living performance4 Inch voice coil, large dynamic design ultra-low unit
        Theatre and multi-function hallExtremely compact , Small enclosure, light weight
        Church

        Used with 1-4 set LS210 line array speakers


        		Medium-sized two-way crossover system

        		All neodymium high sensitivity unit, great dynamic margins

        		With APS angle preset function

        		With FMM monitor mode technology and +15° front panel angle adjustment

        		Configuration WPE Wavepath Equal Distance Sound Guide



        Technical specification
        Frequency response45Hz ~ 150Hz(+3dB)；30Hz ~ 200 Hz (-10dB )
        Nominal directivity(-6dB)Omnidirectional
        Sensitivity (@1w/1m)99 dB SPL
        Power Rating1500W
        Impedance8ohm
        Maximum SPL130 dB/140 dB SPL peak
        Transducers

        LF:1x18" All Condition Woofer


        Physical data

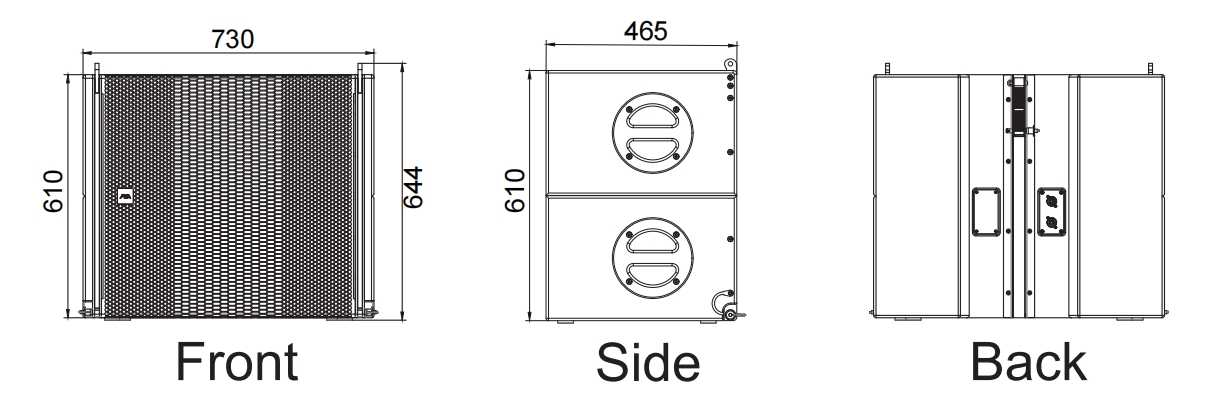

        Dimensions

        730 x 465 x 610 mm

        Weight53kg
        ConnectorsWP4*2,NEUTRIK NL4MP*2
        Speaker Cables

        WP4:1-2+ ;NL .4:1+1-

        Material

        Imported multi-plywood Environmental waterproof

        AND ANTI-CORROSION COATINGS

        FinishBlack Polyurea paintings
        Grille

        DPR(Double Perforation Rate )technology design, in which the perforation rate of the middle and high transmission area is more than 90%,Greatly improves the sound transmission efficiency and reduces the acoustic
