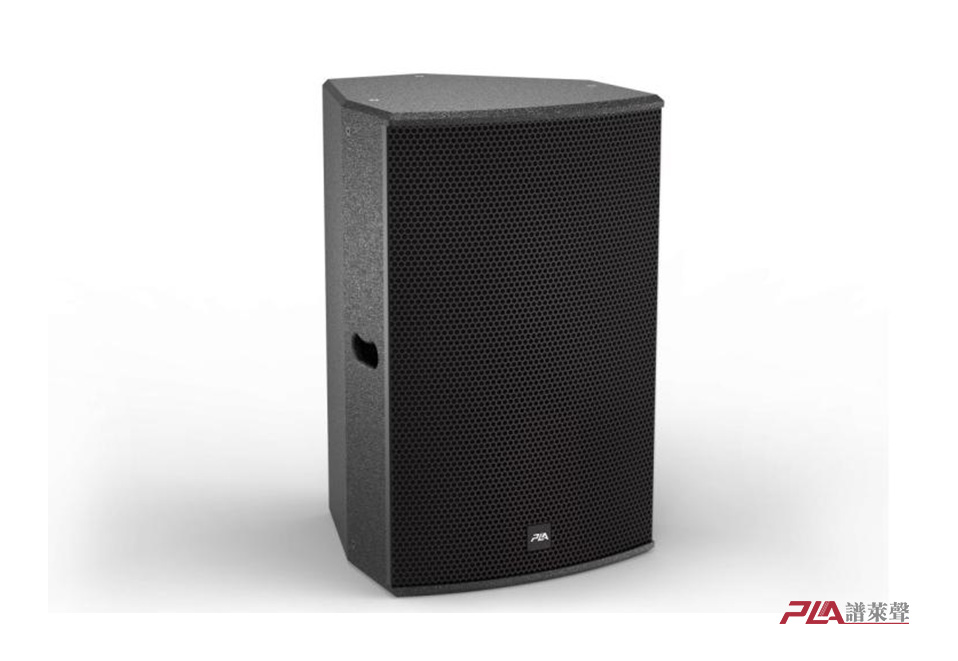

        PS15P


        ApplicationsFeature
        Small FOH

        Rotatable 80 x 50°directivity horn

        Preamplifier circuit technology

        Phase Coherent Technology

        MLC(Microphones&Line Combined Input)

        D-AMP (Class D Amp lifier) Digital Amplifier Circuit Technology

        Elastic bass

        FCT(Full frequency Coherent Technology)

        Selfpowered full range speaker

        Long throw rubber edge LF driver

        Stage Monitor
        Near-Field Sound





        TransducersMaximum

        Technical parameters

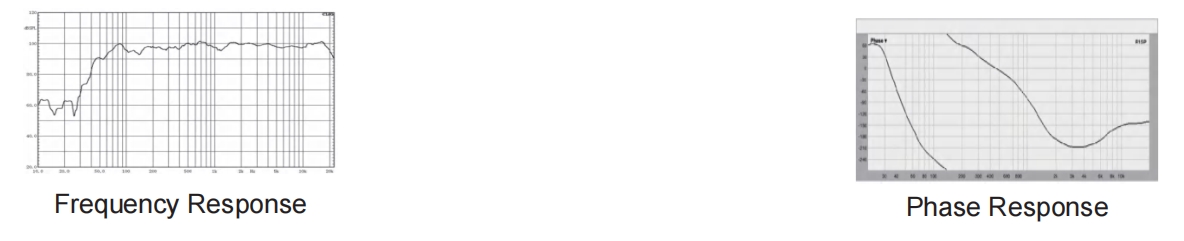

        Frequency response50Hz~ 18 kHz (±3dB ) ；30Hz ~ 20 kHz(-10dB )

        LF:1x15" All Condition Woofer

        HF:1x3" Phase Correction compression driver


        Nominal Impedance80°(H)x50°(V)Constant Directivity
        123dB/133 dB SPL peak

        Power Rating2000W
        SNR

        ≥95dB


        Input connectorsXLR Female Input
        Impedance20kΩBalanced/10kΩUnbalanced
        Output electric circuitClass D circult





        FinishCover

        Physical data

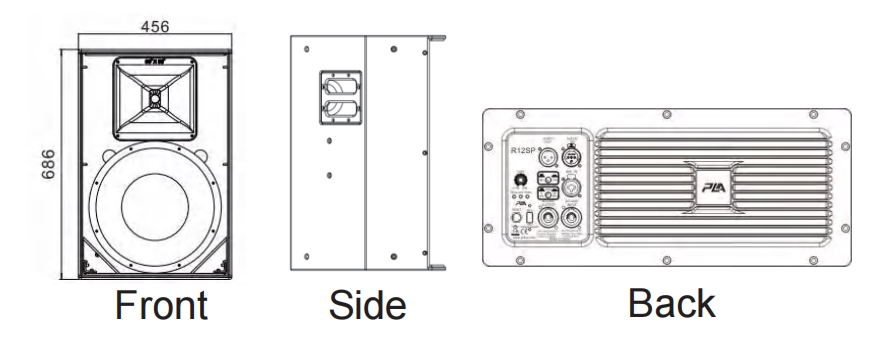

        Dimensions456x445x686mm
        Weight31Kg
        MaterialImported multi-plywood Environmental waterproof and anti corrosion coatings
        Imported multi-plywood Environmental waterproof and anti corrosion coatings
        Black Polyurea paintings

        GrilleDPR(Double Perforation Rate )technology design, in which theperforation rate of the middle and high transmission area ismore than 90%,Greatly improves the sound transmissionefficiency and reduces the acoustic crosstalk of the surfacegrid.
