        PRODUCTS

         Home / Products / Detailed

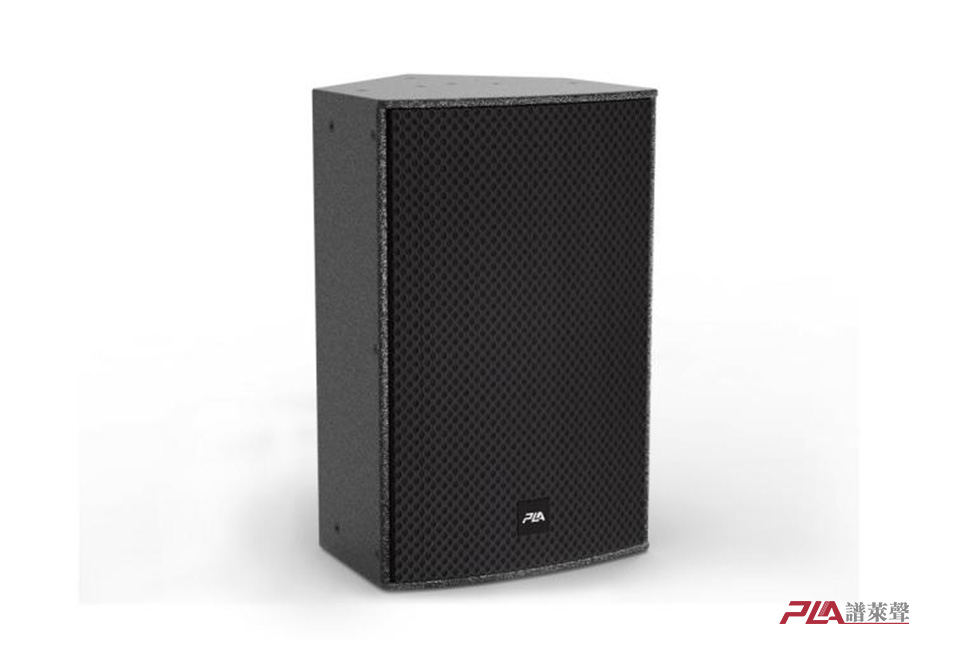

        PS10P



        ApplicationsFeature
        Small FOH

        Rotatable 80 x 50°directivity horn

        Preamplifier circuit technology

        Phase Coherent Technology

        MLC(Microphones&Line Combined Input)

        D-AMP (Class D Amp lifier) Digital Amplifier Circuit Technology

        Elastic bass

        FCT(Full frequency Coherent Technology)

        Selfpowered full range speaker

        Long throw rubber edge LF driver

        Stage Monitor
        Near-Field Sound






        TransducersNominal directivityMaximum SPL

        Technical parameters

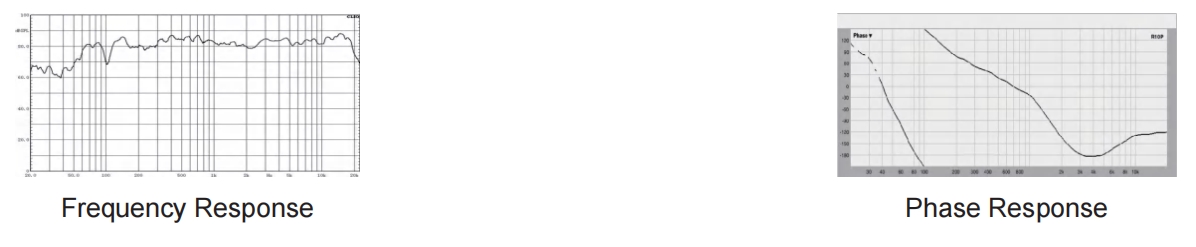

        Frequency response55Hz~ 18 kHz (±3dB ) ；50Hz ~ 20 kHz(-10dB )

        LF:1x10" All Condition Woofer

        HF:1x1.75" Phase Correction



        80°(H)x50°(V)Constant Directivity

        118 dB/128dB SPL peak

        Power Rating 2000W
        SNR

        ≥95dB


        Input connectors XLR Female Input
        Impedance20kΩBalanced/10kΩUnbalanced
        Output electric circuitClass D circult





        MaterialFinishGrilleGrille

        Physical data

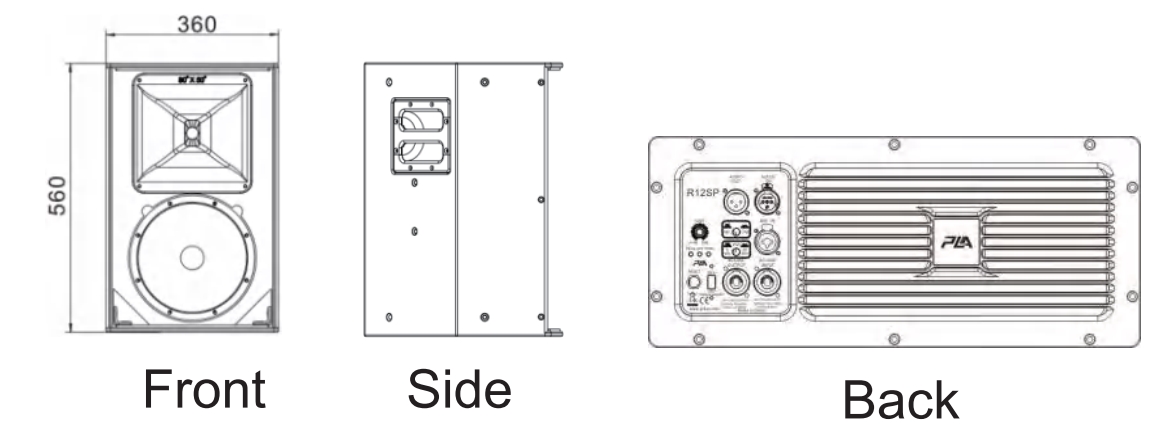

        Dimensions360x410x560mm
        Weight24Kg
        Imported multi-plywood Environmental waterproof and anti corrosion coatings
        Black Polyurea paintings

        Black epoxy mesh grille with acoustically reticulated clot
        DPR(Double Perforation Rate )technology design, in which theperforation rate of the middle and high transmission area ismore than 90%,Greatly improves the sound transmissionefficiency and reduces the acoustic crosstalk of the surfacegrid.
