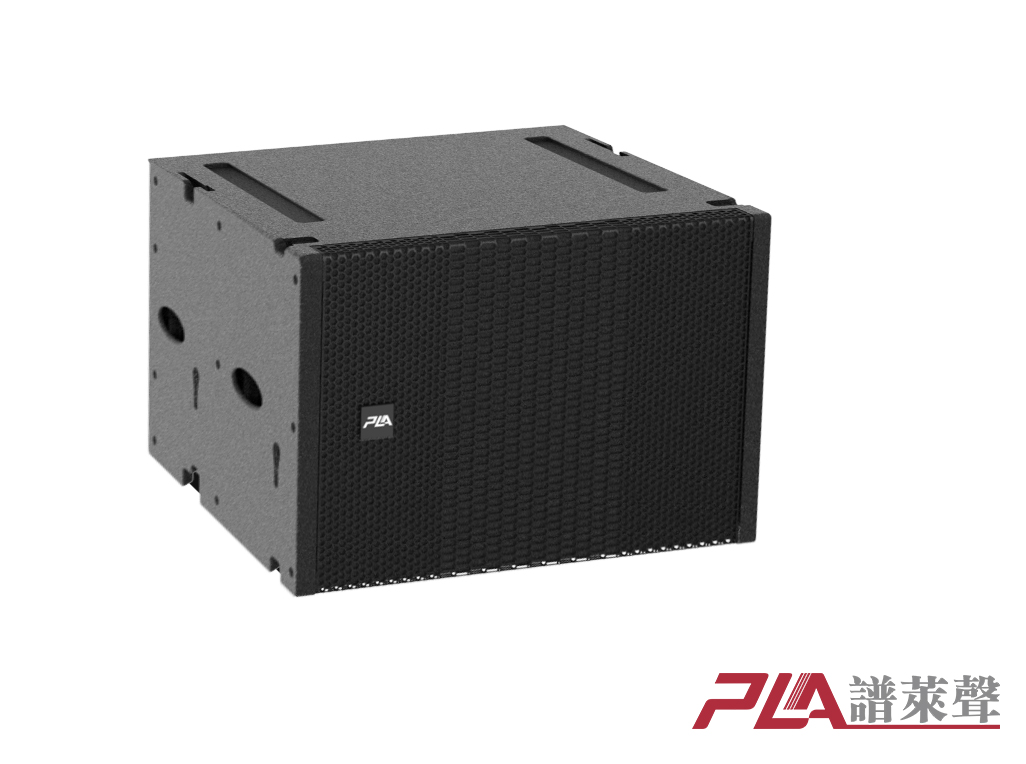

LS206S

Features:

Can match 1-4 LS206 line source array speakers

All neodymium magnet high sensitivity unit, dynamic margin is very large

With WCT (Wavefront Coupling Technology) wavefront coupling technology

Technical parameters:

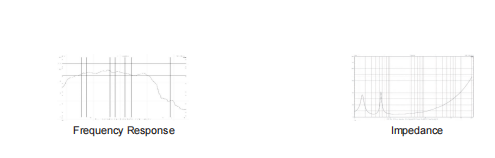

Frequency Response : 35Hz~150Hz(±3dB), 30Hz~200Hz(-10 dB)

Standard Directivity (-6dB) : Non-directional

Sensitivity (@1w/1m): 96dB SPL

Speaker power: 500W

Impedance: 8ohm

Maximum sound pressure level :123dB SPL/133dB SPL peak

Speaker unit: LF: 1x15 “all-weather woofer

Power Input:

Connector : Connector Connection Method

Connection: 1+1-

Appearance:

Dimensions(LxDxH) : 598x510x430mm

Weight: 43kg

Material: imported multi-layer birch board, surface environmental protection PUA polyurea waterproof anti-corrosion coating

Surface treatment: black polyurea paint

Mesh: Black square-hole steel mesh and sound-permeable box cloth

Surface: DPR (Double perforation Rate) double perforation rate technology design, in which the perforation rate of the mid-high transmitting area is more than 90%, which greatly improves the efficiency of sound transmission and reduces the acoustic crosstalk of the surface mesh.

Hanging: four-point hanging

Applications: mobiles performances, theaters and multi-purpose halls, churches
